Benchtop Dispensing Robot With Silicone Dispenser 300ml Cartridge

Benchtop Dispensing Robot With Silicone Dispenser 300ml Cartridge QZ331G-B

Brand: Qizhong Dispensing
Model: QZ331G-B
Origin: NingBo CHINA
Shipping Terms: EXW/FOB/C&F
Delivery Time: 5 work day （Except for customization）
Service: Recommend suitable glue
Experience: More than 10 years experience in dispensing industry

Introduction
Automatic dispensing of low-to-high-grade various viscosity with 300ML, 310ML ,320ML, 330ML polyethylene-aluminum packed dispensing and coating gluing.liquid material Such as Glass glue, silicon glue, seal glue,UV glue etc. Enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant.

keywords: 3-axis Silicone-glue Silicone-Dispensing-Robot Silicone-dispensing-machine

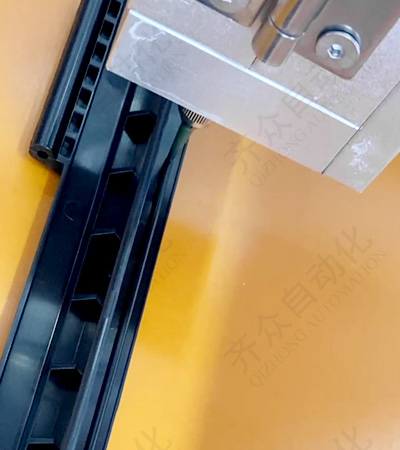

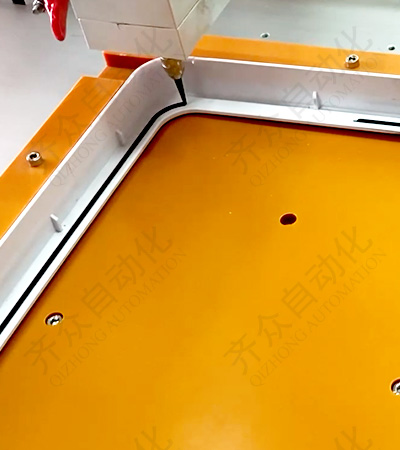

Gluing Effect

Gluing Video

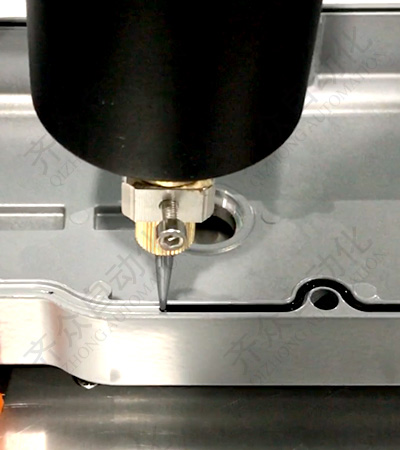

Sealant silicone for engine case, oil pan, gearbox, etc.

Features

1. 300ml Black silicone cartridge storage method: dedicated to the quantitative coating process of 300ml~330ml stick packaging glue on the market;

2. Precision glue volume controller: After more than 10 years of stable application, the stability of the machine in glue volume control is guaranteed;

3. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine;

4. Hand-held programming teaching box: Any graphic trajectory on the same plane can be edited by command methods such as point/line/arc.

Advantages To The Business

1. Alleviate the common problem of difficulty in recruiting workers in many production-oriented enterprises, and replace some manual gluing processes.

2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.

3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).

4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.

Technical Parameters

MODEL	QZ331G-B
Maximum Speed (X&Y/Z)	300 x 300 x 100mm
Body Dimensions	600 x 600 x 600mm
Weight	45KG
Distance between Z-axis and worktable	100mm
Workbench size	200mm150mm(W/D), M4 Hole Position, 40mm40mm Spacing
Industrial Movement	X/Y/Z three-axis three-linkage
Drive System	Precision micro-stepping motor and Stepper drive
Transmission Method	Timing Belt/ Precision Linear Guides
Safety Protection	Photoelectric Sensor
Edit Programming	Handheld Programmer
Program File Name	Numbers and letters
Operation interface	Chinese (Simplified)/English, freely switchable
Interpolation Function	Point/line/line segment/arc/full circle/3D trajectory, etc.
Test	Separate Button
I/O Signals	4 inputs / 4 outputs
XY/Z Maximum Load	10kg/3kg
Equipment Power	Less than 500W
Power Supply	AC220V±10%/AC，50/60Hz
Air supply requirements	0.5～0.7Mpa, Dry air source
Environment Temperature	0 ～40℃

Service

1. Desktop Dispensing Robot is guaranteed for three years.
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Provide free gluing sample service before sale.
5. Recommended supporting automation process solutions.
