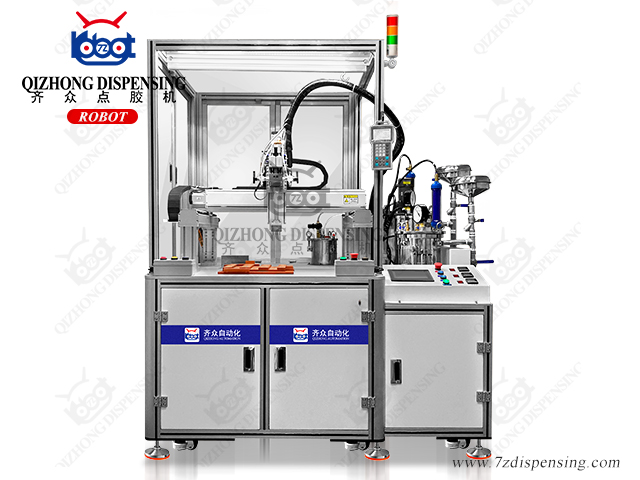

Screw Pump Type Glue Filling Robot With Two Component Mixing & Dispensing QZL551LAB-A
- Brand: Qizhong Dispensing
- Model: QZL551LAB-A
- Origin: NingBo CHINA
- Shipping Terms: EXW/FOB/C&F
- Delivery Time: 5 work day （Except for customization）
- Service: Recommend suitable glue
- Experience: More than 10 years experience in dispensing industry
Introduction
The equipment can realize the functions of automatic pumping, automatic stirring, automatic vacuum defoaming, automatic proportioning, automatic mixing and quantitative glue dispensing for AB double-liquid glue, and adopts screw pump metering method to make the glue dispensing ratio more accurate and stable. , The matching automatic three-axis motion mechanism can realize automatic quantitative glue filling operation at any position in the same plane.
keywords: Epoxy-ResinmixingEpoxy-gluetwo-componentscrew-pumpGlue-Filling-Robot
Features
1. Customized all-stainless steel storage tank: Customize the capacity according to the amount of glue used in the product and the glue ratio requirements, and have functions such as automatic stirring, heating and heat preservation, air drying, and high and low liquid level detection.
2. Precise metering of screw pump type: According to the process requirements such as glue viscosity and glue discharge speed, the rotor and accessories with corresponding displacement are matched.
3. Stable glue discharge: The servo screw method has accurate repeated measurement, continuous and stable glue discharge, no pulse fluctuation, and the servo motor drives the screw pump respectively, so that the speed of each pump body can be individually set to make the AB double-liquid glue in the required proportion. automatic proportioning
4. Supporting cleaning device: put the cleaning agent into the special storage tank for cleaning, and automatically flush the hose and valve through the control panel setting operation
5. AB double-liquid dynamic mixing valve: After automatic proportioning, the AB double-liquid glue flows into the glue valve for automatic mixing and quantitative glue discharge, and the dynamic stirring method is used to make the AB double-liquid glue mixing more fully
6. Three-axis gantry-type servo screw motion mechanism: with high load and high position accuracy, it can better ensure the stability of the movement of the equipment in the automatic glue filling operation.
2. Precise metering of screw pump type: According to the process requirements such as glue viscosity and glue discharge speed, the rotor and accessories with corresponding displacement are matched.
3. Stable glue discharge: The servo screw method has accurate repeated measurement, continuous and stable glue discharge, no pulse fluctuation, and the servo motor drives the screw pump respectively, so that the speed of each pump body can be individually set to make the AB double-liquid glue in the required proportion. automatic proportioning
4. Supporting cleaning device: put the cleaning agent into the special storage tank for cleaning, and automatically flush the hose and valve through the control panel setting operation
5. AB double-liquid dynamic mixing valve: After automatic proportioning, the AB double-liquid glue flows into the glue valve for automatic mixing and quantitative glue discharge, and the dynamic stirring method is used to make the AB double-liquid glue mixing more fully
6. Three-axis gantry-type servo screw motion mechanism: with high load and high position accuracy, it can better ensure the stability of the movement of the equipment in the automatic glue filling operation.
Advantages To The Business
1. Alleviate the common problem of difficulty in recruiting workers in many production enterprises at present, and replace part of the artificial proportioning glue and glue filling process.
2. The equipment is equivalent to being a skilled worker from the beginning, no longer worrying about cultivating a skilled worker.
3. Solve the precise proportion of glue and glue filling process that cannot be achieved manually, and help to break through the bottleneck of product process.
4. Help improve the production capacity and quality of enterprise products, and can achieve batch replication.
2. The equipment is equivalent to being a skilled worker from the beginning, no longer worrying about cultivating a skilled worker.
3. Solve the precise proportion of glue and glue filling process that cannot be achieved manually, and help to break through the bottleneck of product process.
4. Help improve the production capacity and quality of enterprise products, and can achieve batch replication.
Technical Parameters
| MODEL | QZL551LAB-A |
| Moving Range | 500 x 500 x 150mm（customizable） |
| Industrial Movement | X/Y/Z three-axis three-linkage |
| Drive System | Panasonic Servo Motors and Panasonic Servo Drives |
| Transmission Method | TBI precision ball screw and precision linear guide |
| Safety Protection | Photoelectric Sensor |
| Edit Programming | Handheld Programmer |
| Program File Name | Numbers and letters |
| Operation interface | Chinese (Simplified)/English, freely switchable |
| Interpolation Function | Point/line/line segment/arc/full circle/3D trajectory, etc. |
| Test | Separate Button |
| Storage Device | All stainless steel storage tank (can be customized) |
| Adding glue | Automatic glue extraction (vacuum suction) or funnel filling |
| Liquid level detection | Upper and lower liquid level alarm |
| Vacuum defoaming | Matching vacuum pump |
| Stirring device | The motor with stirrer blade automatically stirs to prevent the glue from settling |
| Air source drying | Oil-water separator + air desiccant (to prevent glue from crystallizing) |
| Hose material | Teflon high pressure tube |
| Metering method | Screw pump |
| Drive mode | Servo motor |
| Mixing ratio | 1:1~10:1（customizable） |
| Glue flow rate | Customizable |
| Mixed way | Dynamic blending (or optional static blending) |
| temperature control | 20℃~100℃ adjustable |
| Operation method | Touch screen and buttons |
| Air source requirements | 0.5～0.7Mpa,Dry air source |
| Power Requirements | AC220V±10%/AC，50/60Hz |
| Environment Temperature | 0 ～40℃ |
Service
1. Desktop Dispensing Robot is guaranteed for three
years.
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Recommended supporting automation process solutions.
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Recommended supporting automation process solutions.
