Benchtop Dispensing Robot With Precision Valve and 4L Reservoir Tanks QZ331JT-B
- Brand: Qizhong Dispensing
- Model: QZ331JT-B
- Origin: NingBo CHINA
- Shipping Terms: EXW/FOB/C&F
- Delivery Time: 5 work day （Except for customization）
- Service: Recommend suitable glue
- Experience: More than 10 years experience in dispensing industry
Introduction
Provides reliable operation and excellent repeatability for precise application of low viscosity superglue and cyanoacrylate filling many components and manufacturing processes. Suitable for a variety of fluid loadings.Enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant.
keywords: 3-axisValveReservoir-TanksPrecision

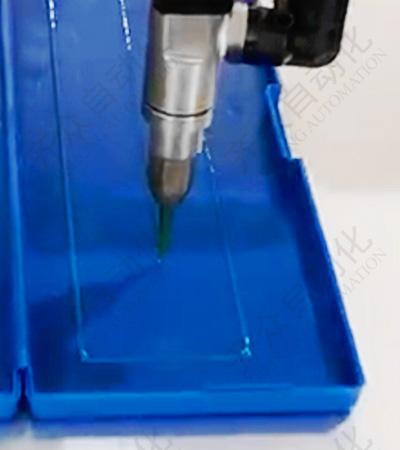

Gluing Effect
Gluing Video
Back suction valve:
The back suction lock glue is quick and does not drip, and its material cylinder is made of 304 stainless steel, which is more wear-resistant and has a longer service life.

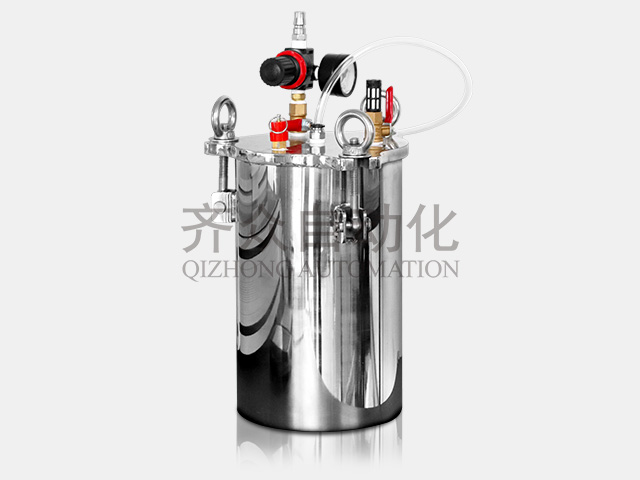

4 Liter Tank:
The barrel body and lid are all made of 304 stainless steel, which makes it more corrosion-resistant and pressure-resistant, with higher safety performance. You can also put a suitable size glue package directly into the barrel to dispense the glue, thereby eliminating the time for cleaning the barrel.Features
2. Precision glue volume controller for glue valve: After more than 10 years of stable application, it ensures the stability of the machine in glue volume control.
3. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine.
4. Hand-held programming teaching box: Any graphic trajectory on the same plane can be edited by command methods such as point/line/arc.
Advantages To The Business
2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.
3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).
4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.
Technical Parameters
| MODEL | QZ331JT-B |
| Maximum Speed (X&Y/Z) | 300 x 300 x 100mm |
| Body Dimensions | 600 x 600 x 600mm |
| Weight | 45KG |
| Distance between Z-axis and worktable | 100mm |
| Workbench size | 200mm*150mm(W/D), M4 Hole Position, 40mm*40mm Spacing |
| Industrial Movement | X/Y/Z three-axis three-linkage |
| Drive System | Precision micro-stepping motor and Stepper drive |
| Transmission Method | Timing Belt/ Precision Linear Guides |
| Safety Protection | Photoelectric Sensor |
| Edit Programming | Handheld Programmer |
| Program File Name | Numbers and letters |
| Operation interface | Chinese (Simplified)/English, freely switchable |
| Interpolation Function | Point/line/line segment/arc/full circle/3D trajectory, etc. |
| Test | Separate Button |
| I/O Signals | 4 inputs / 4 outputs |
| XY/Z Maximum Load | 10kg/3kg |
| Equipment Power | Less than 500W |
| Power Supply | AC220V±10%/AC，50/60Hz |
| Air supply requirements | 0.5～0.7Mpa, Dry air source |
| Environment Temperature | 0 ～40℃ |
Service
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Provide free gluing sample service before sale.
5. Recommended supporting automation process solutions.
