Thread Coating 3 Axis Robot With Syringe Dispenser QZ331LWZ-B
- Brand: Qizhong Dispensing
- Model: QZ331LWZ-B
- Origin: NingBo CHINA
- Shipping Terms: EXW/FOB/C&F
- Delivery Time: 5 work day （Except for customization）
- Service: Recommend suitable glue
- Experience: More than 10 years experience in dispensing industry
Introduction
Applicable to most thread special glues on the market, such as pre-coating dry film glue, liquid or paste anaerobic glue, etc. Quantitative automatic gluing process of thread groove; special three-axis motion platform for thread groove gluing replaces manual use Manually carry out the automatic operation of gluing alveolar of threaded products (such as screws, bolts, studs, screws, etc.), and the supporting hand-held teaching box can store various alveolar gluing procedures for threaded products.
keywords: 3-axisSyringe-Barrelsthread-coatingThread-Coating-Machine

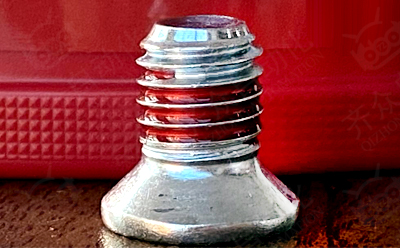

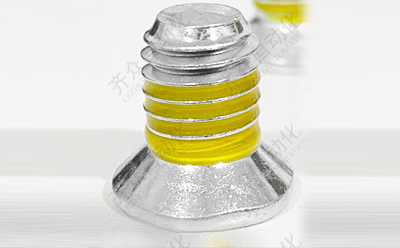

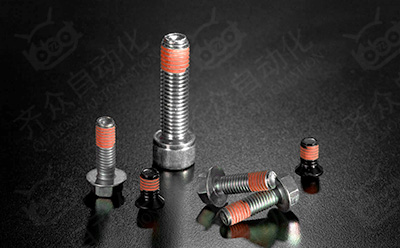

Gluing Effect
Gluing Video
Features
2. Precision glue volume controller: After more than 10 years of stable application, the stability of the machine in glue volume control is guaranteed.
3. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine.
4. Hand-held programming teaching box: The gluing program can be edited by determining the starting point and gluing time, and the gluing program of various product specifications can be stored at the same time, which is convenient to retrieve.
Advantages To The Business
2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.
3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).
4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.
Technical Parameters
| MODEL | QZ331LWZ-B |
| Maximum Speed (X&Y/Z) | 300 x 360° x 100mm |
| Body Dimensions | 600 x 600 x 600mm |
| Weight | 48KG |
| Industrial Movement | XYZ three-axis three-linkage and glue needle follow the thread follower |
| Drive System | Precision micro-stepping motor and Stepper drive |
| Transmission Method | Timing Belt/ Precision Linear Guides |
| Safety Protection | Photoelectric Sensor |
| Edit Programming | Handheld Programmer |
| Program File Name | Numbers and letters |
| Operation interface | Chinese (Simplified)/English, freely switchable |
| Interpolation Function | Point/line/line segment/arc/full circle/3D trajectory, etc. |
| Test | Separate Button |
| I/O Signals | 4 inputs / 4 outputs |
| X/Y/Z Maximum Load | 10kg/2kg/3kg |
| Equipment Power | Less than 500W |
| Power Supply | AC220V±10%/AC，50/60Hz |
| Air supply requirements | 0.5～0.7Mpa, Dry air source |
| Environment Temperature | 0 ～40℃ |
Service
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Recommended supporting automation process solutions.
