Desktop Dispensing Robot With Rotary Axis And 4L Silicone Tank QZ331WJTH-B
- Brand: Qizhong Dispensing
- Model: QZ331WJTH-B
- Origin: NingBo CHINA
- Shipping Terms: EXW/FOB/C&F
- Delivery Time: 5 work day （Except for customization）
- Service: Recommend suitable glue
- Experience: More than 10 years experience in dispensing industry
Introduction
It is suitable for automatic dispensing process of regular products (such as cylinders, etc.) at any angle on the side; precise quantitative dispensing process for medium and high viscosity adhesives (such as single-component epoxy glue, flat sealant, silicone glass glue, etc.); The horizontal three-axis motion platform replaces human hands to perform automated operations on the side of regular products.
Gluing Effect
Gluing Video
Enlarged suction high-viscosity valve:
The use of 304 stainless steel to increase the size of the material cylinder and the material inlet and outlet makes the glue faster, more wear-resistant and has a longer service life, and has the function of sucking back and locking the glue quickly without dripping.

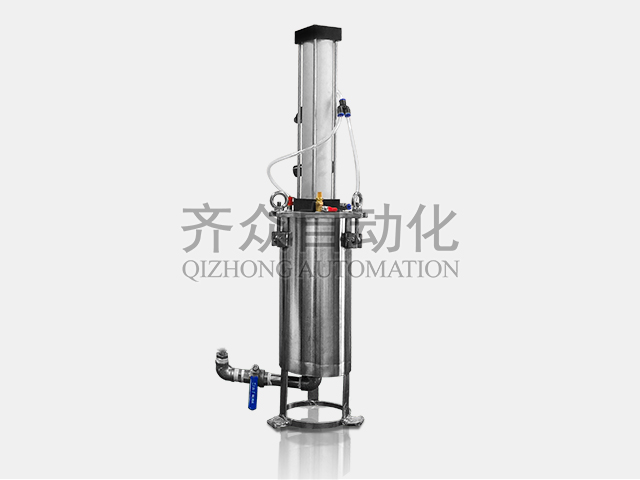

4 Liter All Stainless Steel Piston Storage Tank:
The barrel body and lid are made of 304 stainless steel, which makes it more resistant to pressure and corrosion and has a longer service life. In addition, the piston is closely matched with the inner wall of the barrel, which can make the glue discharge faster through the double thrust of the cylinder and the air source.Features
2. Precision suction valve for medium and high viscosity glue: suitable for precise quantitative dispensing process for medium and high viscosity glue (such as single-component epoxy glue, flat sealant, silicone glass glue, etc).
3. Precision glue volume controller for glue valve: After more than 10 years of stable application, it ensures the stability of the machine in glue volume control.
4. All-stainless steel piston storage barrel: The barrel body and barrel cover are all made of 304 stainless steel, and the matching piston tightly matches the inner wall of the barrel, and the double thrust of the cylinder and the air source makes the glue discharge faster.
5. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine.
6. Hand-held programming teaching box: The arbitrary angle graphic track on the side of the regular product can be edited through commands such as point/line/arc.
Advantages To The Business
1. Alleviate the common problem of difficulty in recruiting workers in many production-oriented enterprises, and replace some manual gluing processes.
2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.
3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).
4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.
Technical Parameters
| MODEL | QZ331WJTH-B |
| Maximum Speed (X/Y/Z) | 300 x 360° x 100mm |
| Body Dimensions | 600 x 600 x 600mm |
| Weight | 48KG |
| Industrial Movement | X/Y/Z three-axis three-linkage |
| Drive System | Precision micro-stepping motor and Stepper drive |
| Transmission Method | Timing Belt/ Precision Linear Guides |
| Safety Protection | Photoelectric Sensor |
| Edit Programming | Handheld Programmer |
| Program File Name | Numbers and letters |
| Operation interface | Chinese (Simplified)/English, freely switchable |
| Interpolation Function | Point/line/line segment/arc/full circle/3D trajectory, etc. |
| Test | Separate Button |
| I/O Signals | 4 inputs / 4 outputs |
| X/Y/Z Maximum Load | 10kg/2kg/3kg |
| Equipment Power | Less than 500W |
| Power Supply | AC220V±10%/AC，50/60Hz |
| Air supply requirements | 0.5～0.7Mpa, Dry air source |
| Environment Temperature | 0 ～40℃ |
Service
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Recommended supporting automation process solutions.
