Application Of Three-axis Industrial Dispensing Robot in UV Adhesive
UV glue, also known as photosensitive glue, UV-curable glue, and shadowless glue, is an adhesive that can only be cured by UV light irradiation. It can be used as an adhesive or a mixture of paints, coatings and inks. UV is the abbreviation of Ultraviolet, namely Ultraviolet. Ultraviolet (UV), invisible to the naked eye, is electromagnetic radiation other than visible light, with a wavelength of 10-400 nm. The curing principle of UV glue is that the photoinitiator (or photosensitizer) in the UV curing material absorbs ultraviolet light under the irradiation of ultraviolet light, and then generates active free radicals or cations, which initiate the chemical reaction of monomer polymerization and cross-linking, and make the glue The adhesive changes from liquid to solid in seconds.
1. After coagulation, the glue becomes white and transparent, and the coagulation effect is good. This is an environmentally friendly glue. The curing effect of UV adhesives is very fast. It only takes a few seconds to heal completely. The requirements for the glue setting conditions are very low. The curing speed of UV glue can only be accelerated by using a UV glue curing lamp.
2. The curing time of UV glue can be controlled.
3. The curing speed is fast, especially in line with the modern assembly line production mode.
These are the benefits of using UV glue. There are many more functions. Of course, if you want to take full advantage of the properties of UV glue, you must use the required accessories and equipment. UV glue curing lamp is one of the indispensable accessories. In order to apply glue, there is another piece of equipment that is indispensable, that is, a three-axis industrial dispensing robot. The combination of the two forms a UV glue applicator, which can realize the function of fast glue application and speed up the curing speed of UV glue. The use of the three-axis industrial dispensing robot can be combined with the assembly line, which is very convenient and has high production efficiency.
Curing Lamp with UV Lamp
UV glue curing lamp is a machine specially produced for UV glue. It can irradiate ultraviolet rays. This light can speed up the curing speed of UV glue. This is also one of the advantages of applying UV glue. After dispensing, it is directly placed on the production line, which improves the production efficiency and does not need to free up the workstation to disrupt the production rhythm.
The UV glue dispenser is composed of a three-axis automatic glue dispenser and a UV glue curing lamp, which meets the requirements of UV glue use, and the use effect will naturally be very good. You can also send the products you need to produce to our Qizhong company. The new method can improve the product and reduce the production cost (can avoid glue waste, labor costs, etc.)!
What are the requirements for the use of UV glue?
First, the UV curing lamp or UV curing equipment must have a protective cover, so that the ultraviolet rays cannot be leaked. One is to waste part of the ultraviolet rays that affect the curing energy, and the other is to cause damage to the operator's eyes.
Second, the dispensing syringe for storing UV glue cannot be transparent. Generally, we use a black syringe to isolate ultraviolet radiation;
These two points must be strictly observed, otherwise the production results will change and the production efficiency will become lower, which is not conducive to product production.
Applicable equipment:

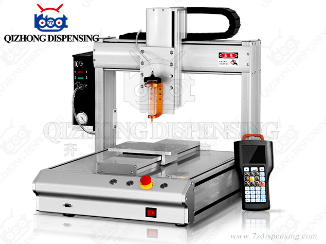

Desktop Dispensing Robot With Syringe QZ331Z-B
