Desktop Industrial Robot With Automatic Alignment

Desktop Industrial Robot With Automatic Alignment QZ331ZT-S

Brand: Qizhong Dispensing
Model: QZ331ZT-S
Origin: NingBo CHINA
Shipping Terms: EXW/FOB/C&F
Delivery Time: 5 work day （Except for customization）
Service: Recommend suitable glue
Experience: More than 10 years experience in dispensing industry

Introduction
After the replacement of accessories and consumables, the deviation of the needle can be automatically corrected, which greatly saves the production time of changing glue and adding glue.It is suitable for most high-precision micro-dispensing processes such as glue, lubricating oil, paint, and ink on the market.It also supports CAD image conversion and import auxiliary programming.

keywords: 3-axis Syringe-Barrels

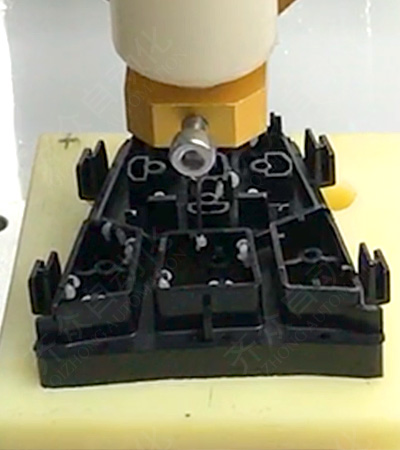

Gluing Effect

Gluing Video

Features

1. 30CC/55CC syringe storage method: suitable for most of the glue, lubricant, paint, ink and other high-precision micro-dispensing processes on the market.

2. High-precision digital display glue volume controller: After more than 10 years of stable application, it ensures the stability of the machine in glue volume control and is suitable for micro-precision dispensing process.

3. All-aluminum profile frame: The batch mold opening process ensures the consistency of the machine and the weight of the profile ensures the stability of the machine.

4. Programming teaching box (supports automatic needle alignment function): Any graphic trajectory on the same plane can be edited through commands such as point/line/arc, and it also supports CAD image conversion and import auxiliary programming.

Advantages To The Business

1. Alleviate the common problem of difficulty in recruiting workers in many production-oriented enterprises, and replace some manual gluing processes.

2. The equipment is equivalent to being a skilled worker from the beginning, and no longer worry about cultivating a skilled worker.

3. Solve the gluing process that cannot be achieved manually, and help break through the bottleneck of product process (such as product gluing precision, uniformity, consistency, etc.).

4. Help to improve the production capacity and quality of enterprise products, and can realize batch replication.

Technical Parameters

MODEL	QZ331ZT-S
Maximum Speed (X&Y/Z)	300 x 300 x 100mm
Body Dimensions	600 x 600 x 600mm
Weight	45KG
Distance between Z-axis and worktable	100mm
Workbench size	200mm150mm(W/D), M4 Hole Position, 40mm40mm Spacing
Industrial Movement	X/Y/Z three-axis three-linkage
Drive System	Precision micro-stepping motor and Stepper drive
Transmission Method	Timing Belt/ Precision Linear Guides
Safety Protection	Photoelectric Sensor
Edit Programming	Handheld Programmer
Program File Name	Numbers and letters
Operation interface	Chinese (Simplified)/English, freely switchable
Interpolation Function	Point/line/line segment/arc/full circle/3D trajectory, etc.
Test	Separate Button
I/O Signals	14 inputs / 10 outputs
XY/Z Maximum Load	10kg/3kg
Equipment Power	Less than 500W
Power Supply	AC220V±10%/AC，50/60Hz
Air supply requirements	0.5～0.7Mpa, Dry air source
Environment Temperature	0 ～40℃

Service

1. Desktop Dispensing Robot is guaranteed for three years.
2. 24-hour online services.
3. Lifelong service of equipment best price replace parts.
4. Provide free gluing sample service before sale.
5. Recommended supporting automation process solutions.
